The VALUEKEEP V3 - Valuekeep Integrator plugin adopts a versioning control based on a hashing system. Each pipeline has a versioning control, that is, it has a hashing key that allows identifying if the subset of information (hashset) has not yet been integrated or if it has eventually suffered some change in its data, requiring a new integration.

This hashing technique is applied to an information segment (hashset), that is, it allows identifying which attributes compose the hashing key (thus ignoring integration requests when the entity undergoes changes in attributes that are not part of the key's composition).

All pipelines have a hashing key (defined using user fields - custom aatributes) in the source system and a hashing file (defined in JSON format), for versioning control. If a physical entity (table) has several pipelines, as many hashing keys should be created as the number of pipelines derived from that table (they may eventually share the hashing file).

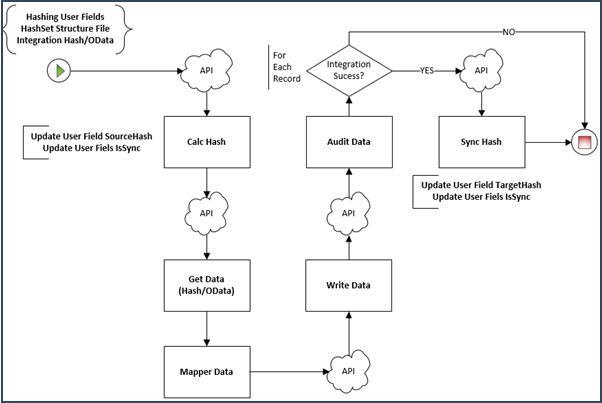

1. SourceHash: attribute used to calculate the hash in the source system (calculated every time a read request is made);

2. TargetHash: attribute used to preserve the hash value in the source system (updated whenever a successful integration is performed);

3. IsSync: attribute used as a conditional filter (this attribute indicates if the record has already been integrated, it is controlled by comparing the values of the "SourceHash" and "TargetHash" attributes);




Composition of the Hashing File of a Pipeline:

1. Algorithm: identifies the hashing algorithm (when ignored, the system assumes MD5);

2. BaseEntity: identifies the base entity, i.e. the main table (mandatory setting);

3. LyncEntities: identifies the related entities, including the main entity (when ignored, the system assumes BaseEntity);

4. Attributes: identifies attributes that constitute the hashing key (when ignored, the system assumes all attributes of the base entity and related ones if applicable);

5. Filter: identifies the conditional filter to apply in the hash calculation (when ignored, the system does not apply any conditional);

6. FieldSourceHash: identifies the SourceHash attribute (when ignored, the system assumes SourceHash);

7. FieldTargetHash: identifies the TargetHash attribute (when ignored, the system assumes TargetHash);

8. FieldSyncHash: identifies the IsSync attribute (when ignored, the system assumes IsSync).
